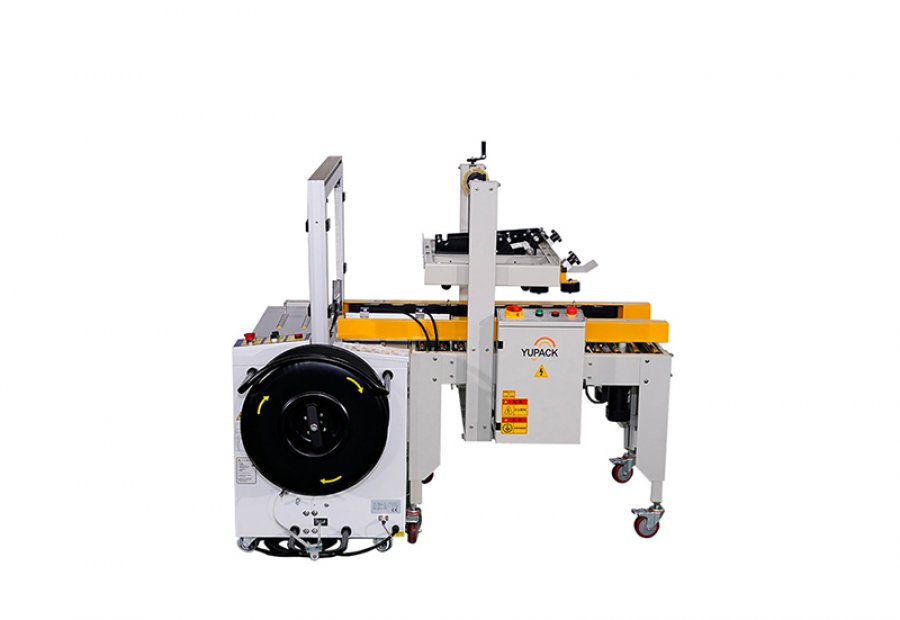

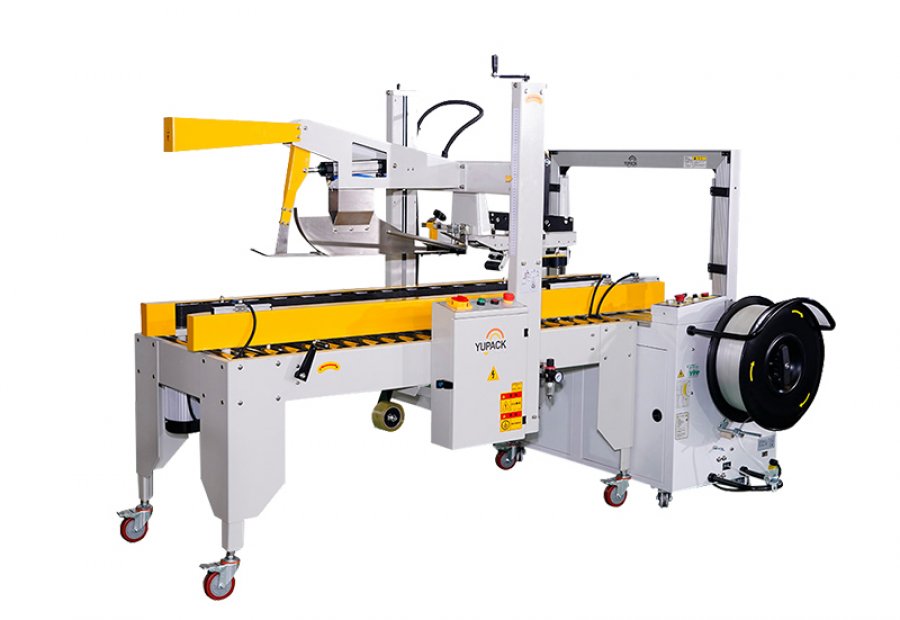

This all-in-one packaging solution combines an automatic tape carton sealer with an automatic strapping machine, enabling efficient carton sealing and strapping in a single integrated workflow. Ideal for high-volume production lines across a wide range of industries.
Key Features – Case Sealer (FXJ-AT5050)
- Automatic top-flap folding with robotic arm mechanism
- Compatible with high-speed carton erectors and automated production lines
- Stainless steel construction available — suitable for food, pharmaceutical, and high-standard assembly lines
Key Features – Strapping Machine (MH-101A)
- Redesigned structure with new mechanism — requires minimal lubrication, easy maintenance, high efficiency
- Supports 4 operating modes: Manual, Continuous, Ball Switch, and Foot Switch
- High-quality materials — heating unit made from stainless steel (copper alloy)
Case Sealer Specifications (FXJ-AT5050)
| Model | FXJ-AT5050 |
| Table Top Height | 610–810 mm |
| Conveyor Speed | 0–20 m/min |
| Suitable Carton Size | L200–600 × W150–500 × H150–500 mm |
| Suitable Tape Width | W48–75 mm |
| Voltage | 220V, 50Hz Single Phase |
| Power | 0.4 kW |
| Machine Size | L1780 × W930 × H1600 mm |
| Machine Weight | 180 kg |
Strapping Machine Specifications (MH-101A)
| Model | MH-101A |
| Brand | YUPACK |
| Type | Automatic |
| Origin | Qingdao, China |
| Max. Tension | 80 kg |
| Strapping Speed | 2.5 sec/cycle |
| Arch Size | W800 × H600 mm (standard) |
| Arch Material | Aluminium |
| Table Height | 630–750 mm (adjustable) |
| PP Strap Width | 9–15 mm |
| PP Strap Thickness | 0.55–1.2 mm |
| Voltage | 220V–415V (1-phase / 3-phase) |
| Power | 0.75 kW, 50/60Hz |
| Machine Size | L1400 × W630 × H1430 mm |
| Packing Size | L1500 × W730 × H1530 mm |
| Machine Weight | 200 kg |
| Gross Weight | 220 kg |
| CE Certification | Certified |
| Warranty | 12 months |
| Warranty Parts | Motor, circuit breaker, control switches, and others |
